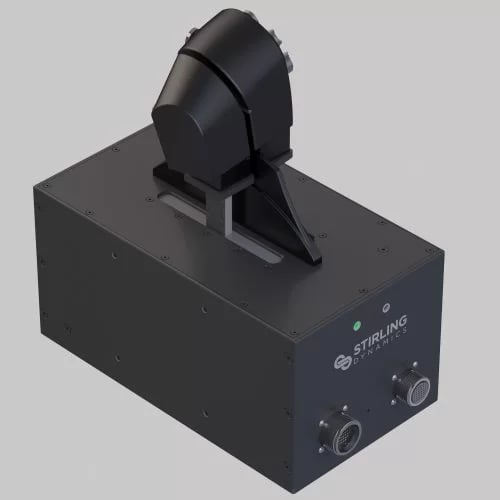

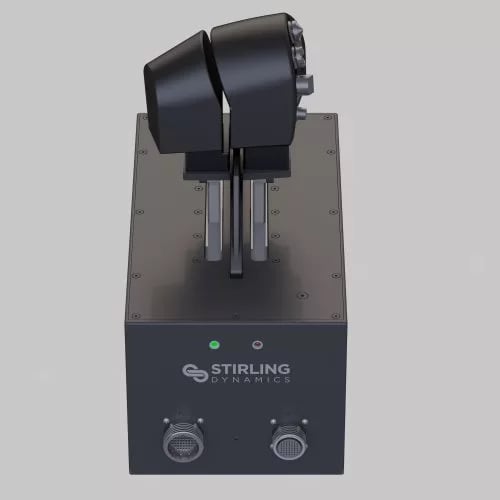

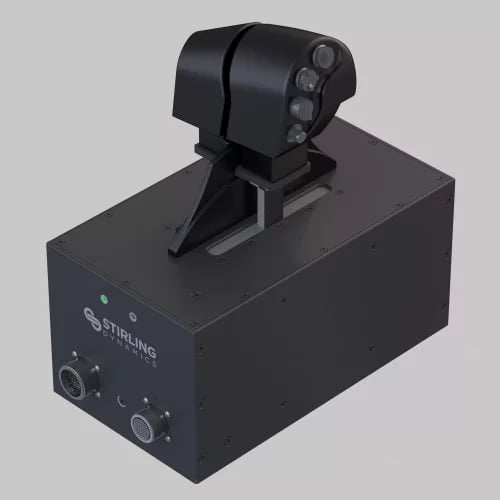

Compact Dual Rotary Throttle
The generic active Dual Rotary Throttle has been made for side or central placement in the cockpit. Used with the Inceptor Control Module (ICM) and 28 V supply, the Compact Dual Rotary Throttle provides forces up to 89 N at 227 mm FRP. Factory reconfigurable grip. Utilises 2 axes in the ICM with safety board to limit finger damage.
Compact Dual Rotary Throttle
Feature-rich, highly reconfigurable and suitable for single or dual (linked) cockpit configurations.
Electronically linkable
The pilot’s and co-pilot’s controls replicate each other’s movements without the need for mechanical linkages providing constant awareness of all user inputs.
Performance
-
Continuous Operational Force*
89 N (20 lbf) *at nominal grip reference point of 227 mm (8.9 in)
-
Active Travel50°
-
Maximum Velocity120°/s
Properties
-
Weight
8 kg (17.6 lb)
-
Base Unit Dimensions (L x W x H)307 x 165 x 145 (mm) and 12.1 x 6.5 x 5.7 (in)
-
Power Requirements28 V, 10 A
Interface
-
Interconnecting Cables
1 x Interconnecting cable (5.5m max), 1 x power cable and 1 x optional grip switch cable
-
Grip TypeGeneric with switches
-
Grip InterfaceFixed
-
Grip Switch Wiring
Flying leads to customer I/O or via ethernet
-
Software Interface
UDP over 1000BASE-T ethernet
-
Input Power Supply
Via ICM unit
