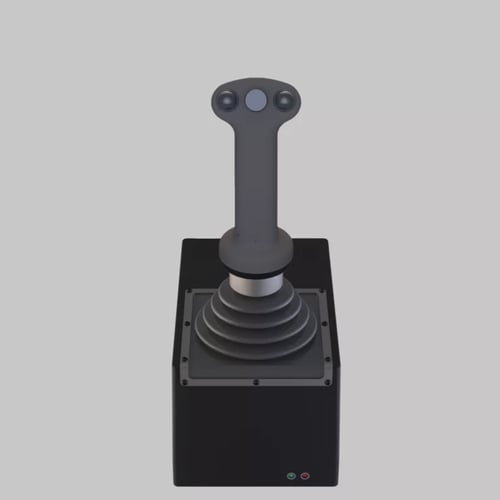

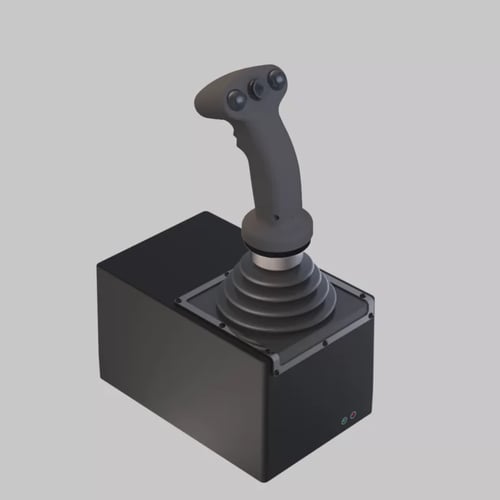

Compact Lite Stick
Stirling Dynamics’ Compact Lite stick is a generic 2-axis active inceptor with configurable feel characteristics, able to mimic the form and feel of any aircraft. Designed for side or centre placement, it can provide feedback forces of up to 89N at the grip reference point. Feature-rich, highly reconfigurable and uses the Stirling SMART-Link technology to ensure rapid deployment and connectivity. Suitable for single or multiple cockpit configurations.
Compact Lite Stick
Feature-rich, highly reconfigurable and uses the Stirling SMART-Link technology to ensure rapid deployment and connectivity. Suitable for single or multiple cockpit configurations.
SMART-Link technology
Uses Stirling SMART-Link technology to ensure rapid deployment and connectivity.
Performance
-
Continuous Operational Force89N (20 lbf)
-
Active Travel±23° Roll and pitch axes
-
Maximum Velocity120°/s
Properties
-
Weight
8.8 kg (19.4 lb)
-
Base Unit Dimensions (L x W x H)
222 x 146 x 136 (mm) or 8.7 x 5.7 x 5.4 (in)
Interface
-
Interconnecting Cables
2 x interconnecting cables - motor & signal (5.5 m max), 1 x power cable and 1 x optional grip switch cable
-
Grip TypeCompatible with generic grip or replica grips for civil or military applications
-
Grip InterfaceMIL-SPEC D38999/26FD35SN with threaded locking ring
-
Grip Switch WiringAll switch channels available via ethernet
-
Software Interface
UDP over 1000Base-T ethernet
-
Input Power Supply
Via dedicated electronics Inceptor Control Module (ICM)
