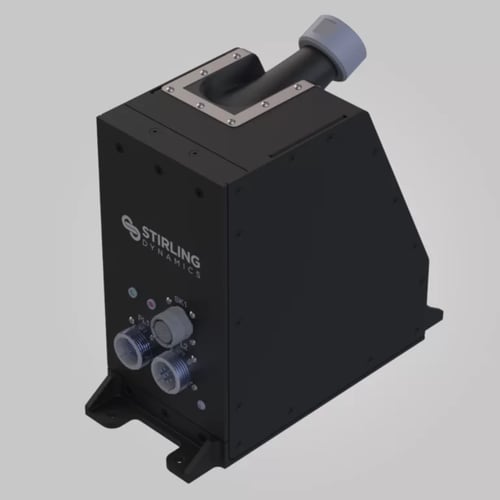

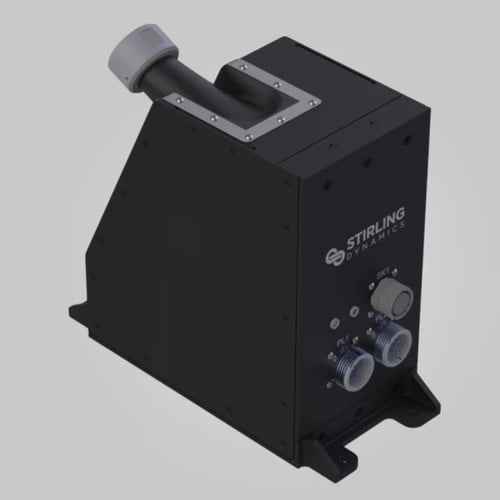

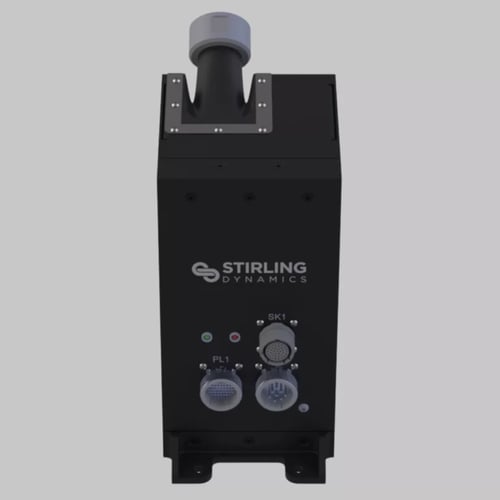

Compact Plus Collective
A UH-60 style active collective used with the Inceptor Control Module (ICM) and 60 V supply to provide forces up to 110 N at 500 mm FRP. The Compact Plus Collective features screw ring mounted grip and pole interface reconfigurable grip. Utilises 2 axes in the ICM.
Compact Plus Collective
Feature-rich, highly reconfigurable and suitable for single or dual (linked) cockpit configurations.
Electronically linkable
The pilot’s and co-pilot’s controls replicate each other’s movements without the need for mechanical linkages providing constant awareness of all user inputs.
Performance
-
Continuous Operational Force*
110 N (25 lbf) *at nominal grip reference point of 500 mm (19.7")
-
Active Travel30°
-
Maximum Velocity120°/s
Properties
-
Weight
7.5 kg (16.5 lb)
-
Base Unit Dimensions (L x W x H)283 x 127 x 249 (mm) and 11.1 x 5.0 x 9.8 (in)
-
Power Requirements60 V, 5 A
Interface
-
Interconnecting Cables
2 x interconnecting cables - motor & signal (5.5 m max), 1 x power cable and 1 x optional grip switch cable
-
Grip TypeShort or long pole with or without flying leads for grip switches, UH-60, generic with switches
-
Grip InterfaceMIL-SPEC D38999/26FD35SN with threaded locking ring
-
Grip Switch Wiring
Flying leads to customer I/O or via ethernet
-
Software Interface
UDP over 1000BASE-T ethernet
-
Input Power Supply
Via ICM unit
For more information, or to order, please get in touch
