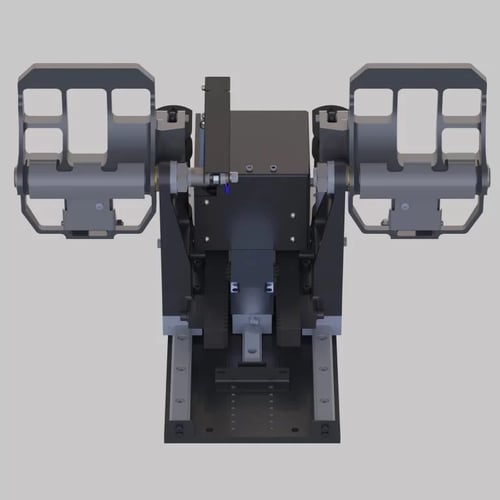

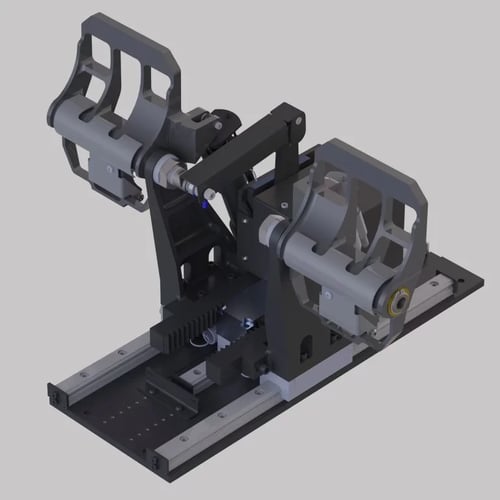

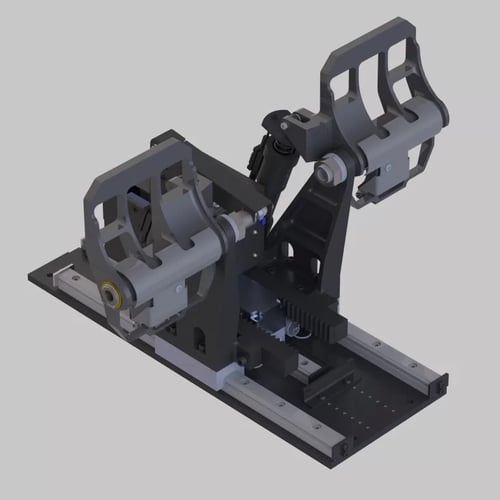

Compact Plus Pedals
UH-60 style active pedals for use with the Inceptor Control Module (ICM) and 60 V supply to provide pedal forces up to 534 N. Foot on pedal switches. Utilises 1 axis in the ICM.
Compact Plus Pedals
Feature-rich, highly reconfigurable and suitable for single or dual (linked) cockpit configurations.
Performance
-
Continuous Operational Force*
534 N (120 lbf)
-
Active Travel200 mm
-
Maximum Velocity100 mm/s
Properties
-
Weight
32 kg (70.5 lb)
-
Base Unit Dimensions (L x W x H)533 x 547 x 371 (mm) and 21.0 x 21.5 x 14.6 (in)
-
Power Requirements60 V, 5 A
Interface
-
Interconnecting Cables
2 x Interconnecting cables - motor & signal (5.5 m max) and 1 x power cable
-
Grip InterfaceN/A
-
Grip Switch Wiring
Trim switch and toe brakes sensors (flying lead to Molex connector)
-
Software Interface
UDP over 1000BASE-T ethernet
-
Input Power Supply
Via ICM unit
