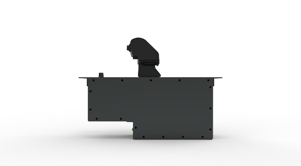

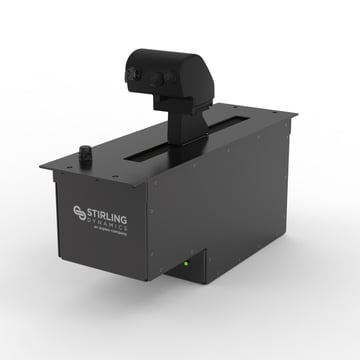

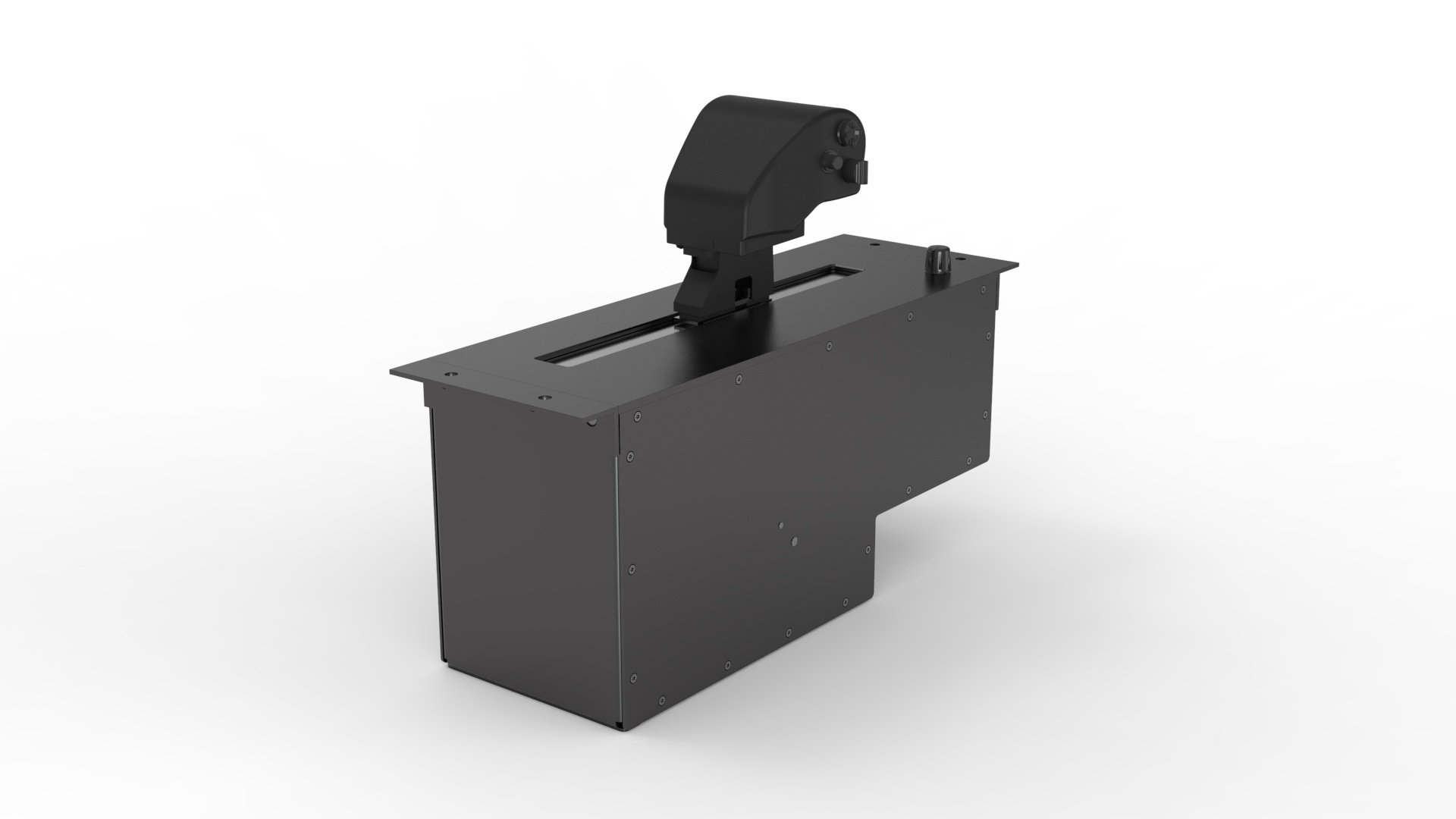

Compact Lite Linear Throttle
Stirling Dynamics’ Compact Lite Linear Throttle is a generic single axis active inceptor with configurable feel characteristics, able to mimic the form and feel of the subject aircraft. Designed for side placement it can provide feedback forces of up to 294N. Feature-rich, highly reconfigurable and uses the Stirling SMART-Link technology to ensure rapid deployment and connectivity. Suitable for single or multiple cockpit configurations.
Compact Lite Linear Throttle
Feature-rich, highly reconfigurable and uses Stirling SMART-Link technology to ensure rapid deployment and connectivity.
SMART-Link Technology
Suitable for single or multiple cockpit configurations, with feedback forces up to 294N.
Performance
-
Continuous Operational Force
40 lbf (178 N)
-
Active Travel
9" (227 mm)
-
Maximum Velocity
9"/s (227mm/s)
Properties
-
Weight
9.2 kg (20.28 lb)
-
Base Unit Dimensions (L x W x H)
416 x 157 x 207 (mm) or 16.4 x 6.2 x 8.1 (in)
Interface
-
Interconnecting Cables
5.5m (max) standard or to customer required length
-
Grip Type
Generic, replica or customer supplied
-
Grip Switch Wiring
All switch channels available via ethernet from ICM
-
Software Interface
UDP over 1000Base-T Ethernet
-
Input Power Supply
Via dedicated electronics Inceptor Control Module (ICM)
